Beverage Factory Ice Cream Sugar Cone Production Line
Product Description

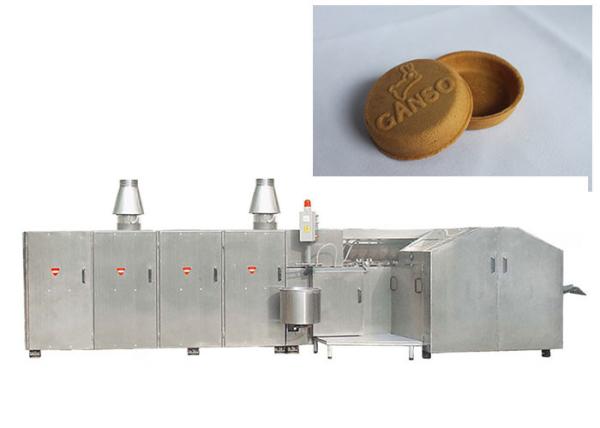

The Sugar Cone production line is fully automatic to make ice cream
cone with high quality.The Fully Automatic Sugar Cone Making
Machine can make sugar rolled cone, egg roll, round thin biscuit,
wafer biscuit and bowl-shaped cup. We can design the different
baking machines to make different types of sugar rolled cones as
required by clients.
Features:
The machine is suitable for making flat mouth sugar cone length
less than 120mm. Cone degree, weight, thickness and pattern spacing
customized according to customer demand.
The machine is consist of 280*240mm baking plates, plates material
is high-qualified ductile cast iron, each plates can make two cone
sheets.
The machine is driven by the 3 phases power and backing oven is
heating with gas (natural gas or liquid gas), electric ignition,
oven temperature electronic display. The producing ability is very
high and it is all automatic from spraying the batter, baking,
forming, falling off from molds, conveying products, stacking and
counting.
Model | Input power | Dimension | weight | Liquefied petroleum gas(LPG)
the biggest consumption (kgh) | Baking plate quantity/machine | Product
size(mm) | Outputhour(pcs/h) |
SD80-37x2 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 125 | 3500-4000 |
SD80-37 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 165 | 2500-3000 |
SD80-45x2 | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 125 | 4000-5000 |
SD80-45A | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 165 | 2500-3000 |
SD80-53x2 | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 125 | 5000-6000 |
SD80-53A | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 165 | 3000-3500 |
SD80-61x2 | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 125 | 6000-7000 |
SD80-61A | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 165 | 3500-4000 |
SD80-69x2 | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 125 | 7000-7500 |
SD80-69A | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 165 | 4000-4500 |
