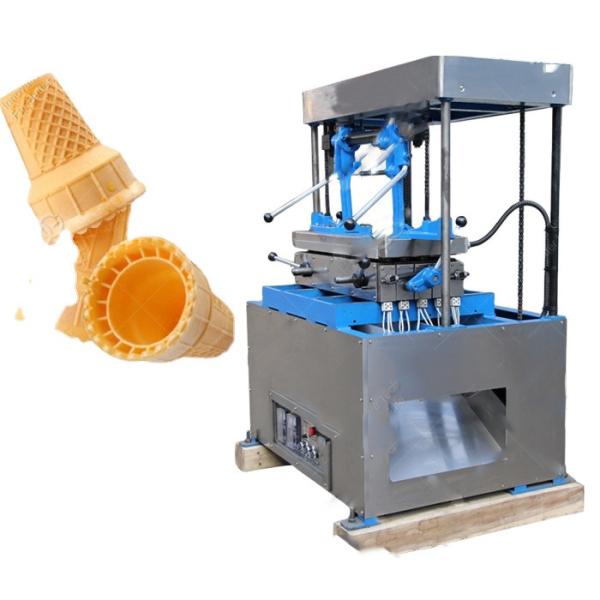

Tea Restaurant Small Business Wafer Cone Making Machine
Introduction
Semi Automatic Wafer Cone Making Machine is the equipment of making sweet ice cream cones which is suitable
in tea restaurant, coffee shop, bakery, cake room, drinks shop etc.
It is the beneficial tool to start small business.
Characteristics
1. Simple operation, only one person can produce.
2. Multifunctional, can produce different shapes,like corn-shaped,
flower-shaped (tulip, petunia, etc.), torch-shaped, horn shaped,
flat bottom, and the colors, sizes are customized.
3. Small machine, easy to move.
4. High efficiency, 1-2minutes can finish the baking.
Operation of Wafer Cone Making Machine
1. Brush some oil, like animal oil, vegetable oil, on the surface
of molds(upper and lower), which is easier to de-mould.
1. Preheat: Turn on the machine,set the upper and lower mold
temperature.
2. The batter is poured into the cavities of the closed lower mold.
3. Operate the upper mold, make the cone cores dipping into the
batter.
4. The cones fall into a collecting container below the baking
mold.
Technical Parameter
Model | TZ-2 | TZ-4 | TZ- 10 | TZ- 12 | TZ-24 | TZ- 24C | TZ- 32 | TZ-32C | TZ- 40 | TZ- 60 |
Quantity/ per time | 2 | 4 | 10 | 12 | 24 | 24 | 32 | 32 | 40 | 60 |
Capacity (pcs/h) | 50- 60 | 100- 120 | 250- 300 | 300- 350 | 600- 800 | 600- 800 | 800- 1000 | 800- 1000 | 1200- 1400 | 2400- 3000 |
Time (minutes) | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 | 1-2 |
Power (kw) | 1.5 | 2.4 | 4.5 | 6.5 | 12 | 12 | 15 | 15 | 18 | 21 |
Dimension (mm) | 450* 350 *700 | 530 *430 *650 | 760 *600 *1050 | 800* 700 *880 | 1050* 800* 900 | 730* 800 *1370 | 1200* 800 *900 | 880* 880 *1380 | 1080* 800 *1440 | 1260* 1140 *1640 |
Net Weight (kg) | 45 | 80 | 200 | 180 | 280 | 350 | 320 | 450 | 580 | 850 |
