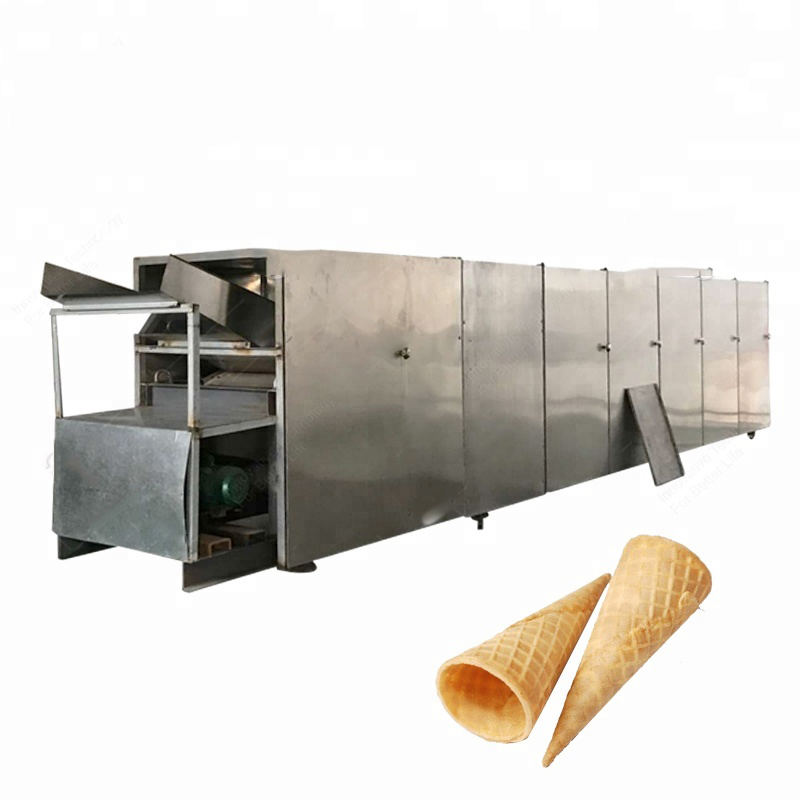

Tunnel Type Automatic Rolled Sugar Cone Making Machine
Product Description
Introduction:
SD80 series tunnel-type full automatic sugar cone making machine is
a kind of machine which controlled by PLD,with complete
automatization , high capacity and stable performance.It is very
popular all over the world.
Features:
The machine is suitable for making flat mouth sugar cone length
less than 120mm. Cone degree, weight, thickness and pattern spacing
customized according to customer demand.
The machine is consist of 280*240mm baking plates, plates material
is high-qualified ductile cast iron, each plates can make two cone
sheets.
The machine is driven by the 3 phases power and backing oven is
heating with gas (natural gas or liquid gas), electric ignition,
oven temperature electronic display. The producing ability is very
high and it is all automatic from spraying the batter, baking,
forming, falling off from molds, conveying products, stacking and
counting.
| Model | Input power | Dimension | weight | Liquefied petroleum gas(LPG)
the biggest consumption (kgh) | Baking plate quantity/machine | Product
size(mm) | Outputhour(pcs/h) |
| SD80-37x2 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 125 | 3500-4000 |
| SD80-37 | 3.37KW | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 165 | 2500-3000 |
| SD80-45x2 | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 125 | 4000-5000 |
| SD80-45A | 3.37KW | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 165 | 2500-3000 |
| SD80-53x2 | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 125 | 5000-6000 |
| SD80-53A | 3.37KW | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 165 | 3000-3500 |
| SD80-61x2 | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 125 | 6000-7000 |
| SD80-61A | 4.07KW | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 165 | 3500-4000 |
| SD80-69x2 | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 125 | 7000-7500 |
| SD80-69A | 4.37KW | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 165 | 4000-4500 |
