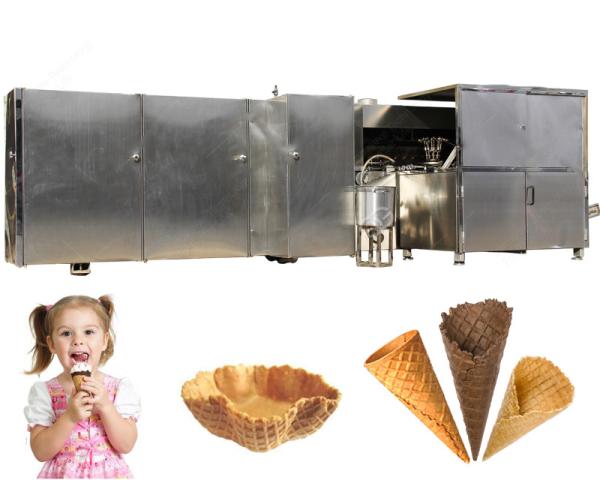

4000pcs/H Stainless Steel Ice Cream Cone Production Line
Ice Cream Cone Making Machine Parameters
| Name | SD80-37x2 |
| Voltage | 380v | Product size | 135mm |
| Total power | 3.37kw | Output/hour | 3500-4000pcs/h |
| LPG consumption | 7-8kg/h | Electrical accessories | Schneider |
| Machine dimension | L8XW2.1XH2M | PLC controller | Schneider |
| Net weight | 4500kg | Controller | Schneider |
Ice Cream Cone Making Machine Introduction
We produce many kinds of Automatic Ice Cream Cone Making Machine
,such as semi-automatic cone machine,automatic cone machines and
ice cream cone production line.
We also have the wafer ice cream cone machines,such as for
different popular shapes in china and all over the worlds.
Welcome to contact us with your cone pictures,design,size and
capacity then we can talk more and suggest you the suitable ice
cream cone machines.
Ice Cream Cone Making Machine Working Principle
The whole machine is controlled by Schneider PLC, operated by the
main motor, roller , solenoid valve and air fan, the baking plate
of the machine is heated, after it shows about 180℃, the mixed
batter will be pumped in a certain adjusted amount to the baking
plate by the discharging pump, and automatically close the baking
plate. The pastry is adjusted in a certain thickness, then the
driving wheel drives baking plate into the oven from the upper and
lower fire flame nozzle, after baking, the mixed batter has become
a pastry, the machine hand accurately put the pastry into the roll
mold to form finished product, after de-moulding, the finished
product is sent out.
Ice Cream Cone Making Machine Specifications:
| Model | Input power | Machine dimension | weight | LPG consumption | Baking plate quantity/machine | Product size(mm) | Output/hour |
| SD80-37x2 | 3.37kw | L8XW2.1XH2M | 4500kg | 7-8kg/h | 37 | 135mm | 3500-4000pcs/h |
| SD80-37A | 3.37kw | L6.6xW2.1xH2m | 3800kg | 5-6kg/h | 37 | 165mm | 1800-2000pcs/h |
| SD80-45x2 | 3.37kw | L8.6XW2.1XH2M | 5000kg | 10-12kg/h | 45 | 135mm | 4500-5000pcs/h |
| SD80-45A | 3.37kw | L8xW2.1xH2m | 4800kg | 7-8kg/h | 45 | 165mm | 2200-2500pcs/h |
| SD80-53x2 | 3.37kw | L10.3xW2.1xH1.8m | 5800kg | 10-12kg/h | 53 | 135mm | 5000-6000pcs/h |
| SD80-53A | 3.37kw | L8.5xW2.1xH2m | 5300kg | 8-10kg/h | 53 | 165mm | 2800-3200pcs/h |
| SD80-61x2 | 4.07kw | L12.2xW2.1xH2M | 7000kg | 16-18kg/h | 61 | 135mm | 6000-7000pcs/h |
| SD80-61A | 4.37kw | L9.8xW2.1xH2m | 6000kg | 10-12kg/h | 61 | 165mm | 3400-3800pcs/h |
| SD80-69x2 | 4.37kw | L13.5xW2.1xH2M | 7800kg | 18-20kg/h | 69 | 135mm | 7000-7500pcs/h |
| SD80-69A | 4.37kw | L11xW2.1xH2m | 6800kg | 14-16kg/h | 69 | 165mm | 3800-4200pcs/h |
