Tunnel Type 3800pcs/H Automatic Ice Cream Cone Machine
Automatic Ice Cream Cone Machine Features:

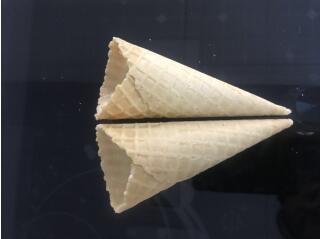

The machine is suitable for making flat mouth sugar cone length
less than 120mm. Cone degree, weight, thickness and pattern spacing
customized according to customer demand.
The machine is consist of 280*240mm baking plates, plates material
is high-qualified ductile cast iron, each plates can make two cone
sheets.
The machine is driven by the 3 phases power and backing oven is
heating with gas (natural gas or liquid gas), electric ignition,
oven temperature electronic display. The producing ability is very
high and it is all automatic from spraying the batter, baking,
forming, falling off from molds, conveying products, stacking and
counting.
Automatic Ice Cream Cone Machine Working principle:
Feeding the mixed flour paste by feeding pump to the baking plate
and automatically close the baking plate, forming as the thickness
of the dough,then put into the oven to bake.After baking ,the paste
has forming.Using the manipulator to put it in the mould of rolling
to make the finished products.after demould conveyor the products.
Automatic Ice Cream Cone Machine Advantage
1. Easy Operation
2. Advanced heating system
3. Durable innoxious cone mould as per sanitation standard
4. Temperature adjustable
| Model | Input power | Dimension | weight | Liquefied petroleum gas(LPG)
the biggest consumption (kgh) | Baking plate quantity/machine | Product
size(mm) | Outputhour(pcs/h) |
| SD80-37x2 | 3.37W | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 125 | 3500-4000 |
| SD80-37 | 3.37W | 7.6x2.1x1.8 | 4500 | 6 | 37 | Length below 165 | 2500-3000 |
| SD80-45x2 | 3.37W | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 125 | 4000-5000 |
| SD80-45A | 3.37W | 8.7x2.1x1.8 | 5000 | 7 | 45 | Length below 165 | 2500-3000 |
| SD80-53x2 | 3.37W | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 125 | 5000-6000 |
| SD80-53A | 3.37W | 9.8x2.1x1.8 | 5500 | 8 | 53 | Length below 165 | 3000-3500 |
| SD80-61x2 | 4.07W | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 125 | 6000-7000 |
| SD80-61A | 4.07W | 11x2.1x1.8 | 6500 | 10 | 61 | Length below 165 | 3500-4000 |
| SD80-69x2 | 4.37W | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 125 | 7000-7500 |
| SD80-69A | 4.37W | 12.5x2.1x1.8 | 7300 | 11 | 69 | Length below 165 | 4000-4500 |
